| Εφαρμόσιμα συστατικά: | 0402, 0805, 0603, 1206, SOP | Παροχή ηλεκτρικού ρεύματος: | 220V/110V, AC220V 50Hz/AC110V 60Hz, AC220V/110V 50Hz, 3-Phase εναλλασσόμενο ρεύμα 200/208/220/240/38 |
|---|---|---|---|
| Όνομα προϊόντων: | Μηχανή συνελεύσεων των οδηγήσεων Mounter \ των οδηγήσεων μηχανών \ θέσεων, αυτόματοι τοποθετώντας σκ |
product details

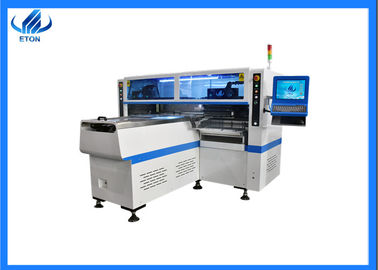

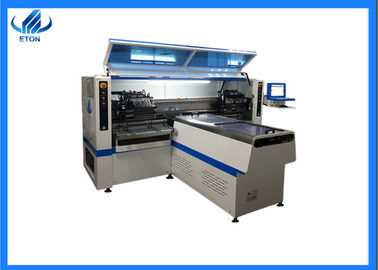

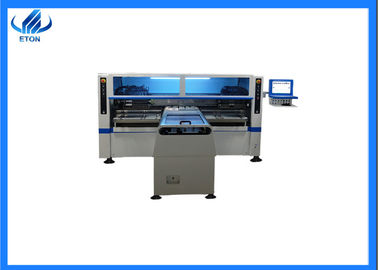

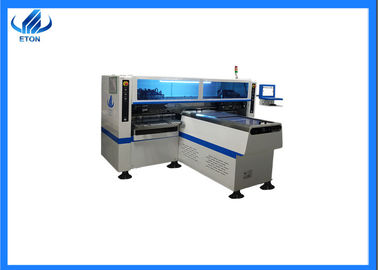

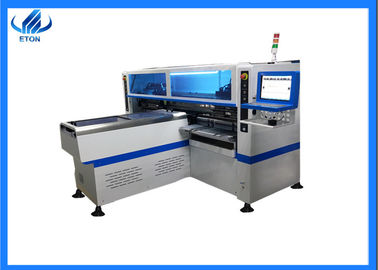

HT-X9 is dual-arm magnetic levitation LED high speed pick and place machine.the capacity reach 200000CPH.It is Suitable for 0.5M,1M Strip, Tube and Panel Light.it can mount LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
technical parameter of smt mounter ht-x9
| Model number | HT-X9 |
| Dimension | 2450*2100*1550mm |
| PCB size | 250mm*any length |
| PCB thickness | 0.5～1.5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 64pcs |
| NO.of nozzles | 64pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | any length |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| Air Force | 0.5mpa |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
product parts of pick and place machine ht-x9
Producing with 2～4 types of materials with high capacity at same time.
Single plate material can be mounted, and the same plate material is always mounted on the same lamp.
Dual-arm four modules with 16 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
Calibration automatically.
Exclusive patent technology:group to pick and group to mount.
Packing and transportation
Company profile
In November 2011, Shenzhen ETON automation equipment co., ltd. was established in Shenzhen, China. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT high-speed SMT mounter. Our management policy is sincere operation, concentrate on research and development, manufacturing, intimate service, customers rest assured. Our aim is to create value for customers and benefit for the society. We aspire to be the world's most competitive placement machine and cutting-edge electronic testing equipment manufacturing and service provider.
business terms
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
our services
Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
