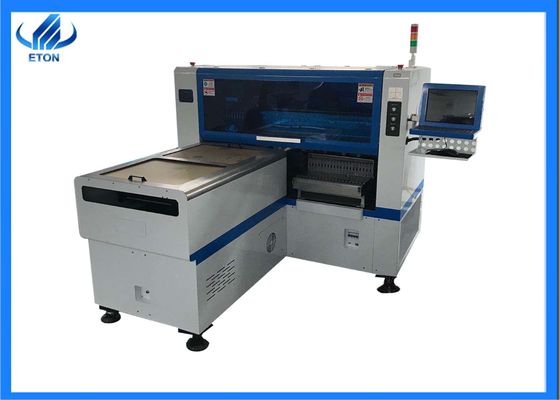

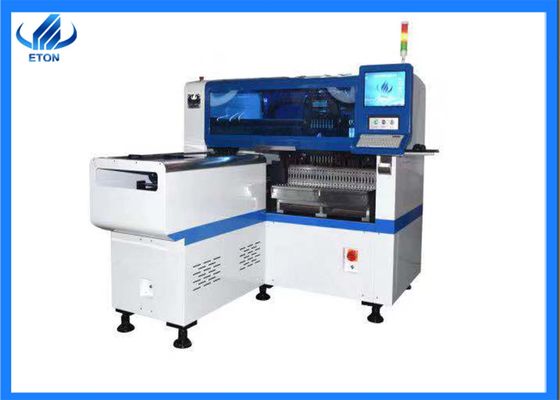

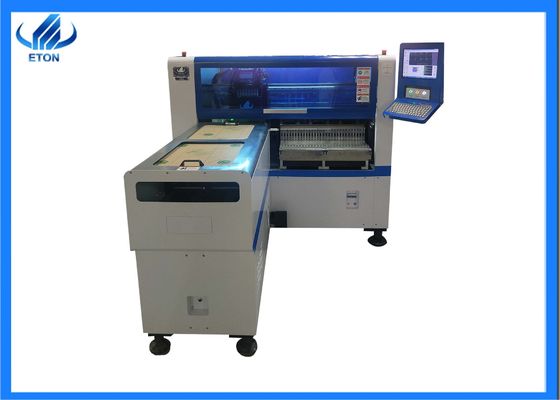

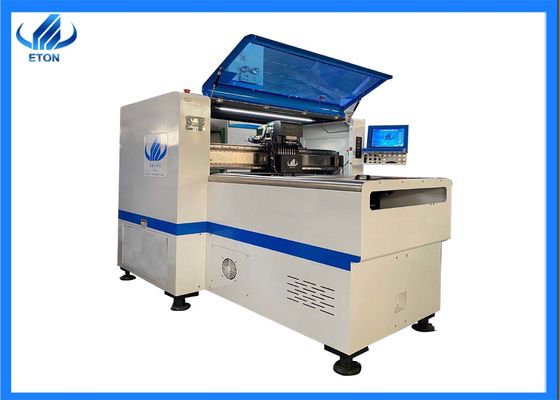

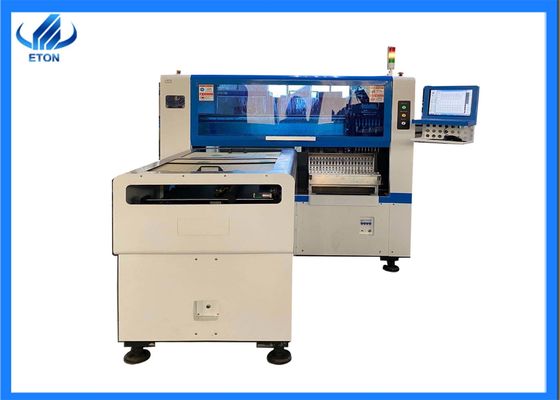

smt pick and place machine,high speed pick and place machine,magnetic linear motor,smt mounting,smt production line

Packing details: vacuum packing and wooden case

Shipping: Shenzhen port within 30 days after payment

Port: Shenzhen

Lead time:

Production line example of [pick and place machine

Company profile

trade show

contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825



Industry related knowledge

Multi-function placement

The multi-function placement machine can carry PCB board is much larger than EM series placement machine ,760 L can carry the maximum PCB size is 510*460*2, followed by 120 stations, more than EM series of other placement machine. are the most critical and complex equipment in the whole SMI, production. Fitting machine is the main equipment in SMT production line, now, the placement machine has developed from the early low-speed mechanical placement machine to high-speed optical alignment placement machine, and to multi-function, flexible connection modular development.

Performance parameters:

● patch speed 4000-5000 cph( industrial standard)

● minimum mountable 0201 components

● overlooking high-definition computer vision

● automatic suction

●8 mm Feeder :8*2,8*4(paper tape or tape)

●12 mm Feeder :12*4,12*8,12*12

●16 mm Feeder :16*8,16*12

●24 mm Feeder :24*8,24*12,24*16

●32 mm Feeder :32*12,32*16,32*24

●44 mm Feeder :44*16,44*24,44*32

Reflow soldering

Reflow soldering technology is no stranger in the field of electronic manufacturing. The components on all kinds of boards used in our computers are welded to the circuit board through this process. The inside of this equipment has a heating circuit, which heats air or nitrogen to a sufficiently high temperature and blows to the circuit board that has been pasted, so that the solder on both sides of the components melts and binds to the main board. The advantage of this process is that the temperature is easy to control, the oxidation can also be avoided during welding, and the manufacturing cost is easier to control.
